WS2000

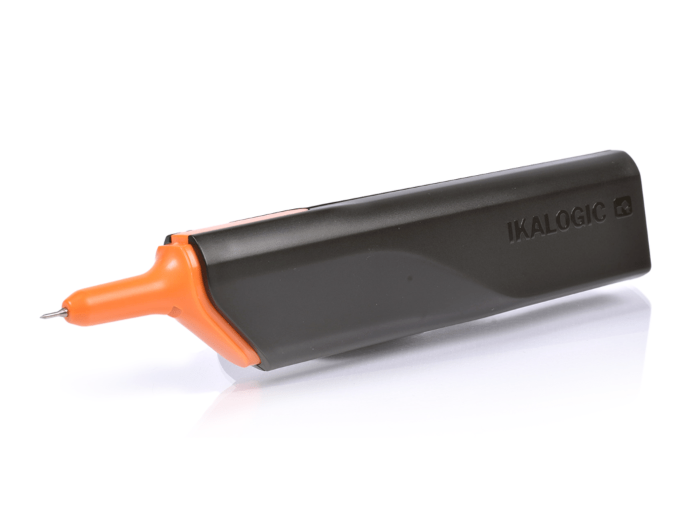

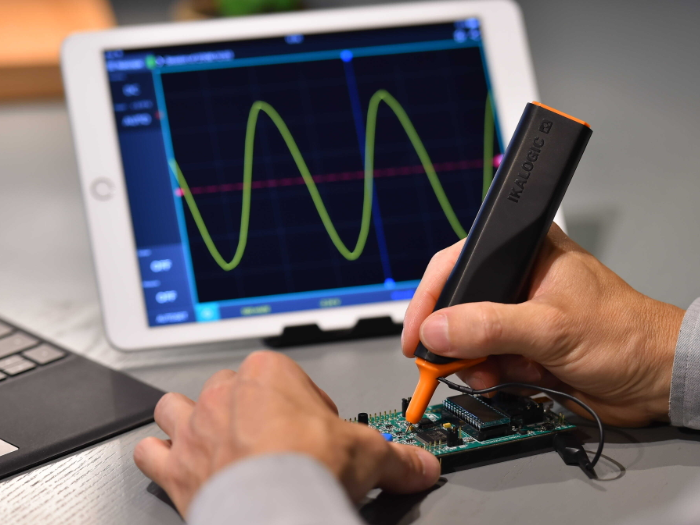

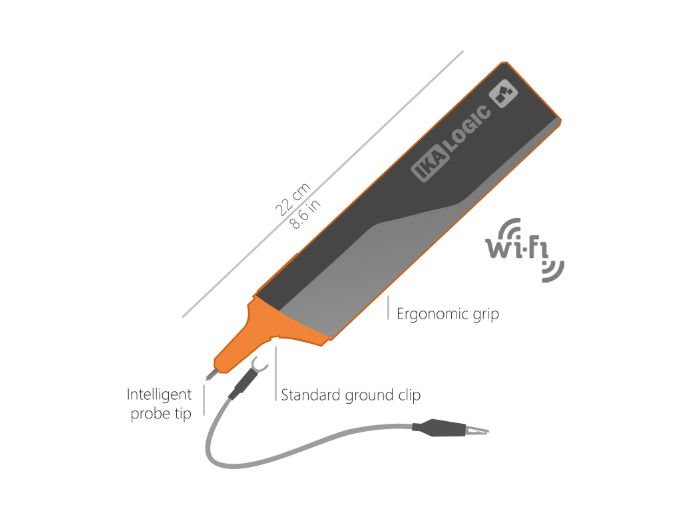

IkaScope는 새로운 종류의 계측기입니다: Wi-Fi 연결 프로브 안에 모든 기능을 갖춘 오실로스코프가 장착되어 있습니다. IkaScope는 책상 위 공간을 차지하지 않으며 1주일의 배터리 수명으로 어디에서나 사용자를 따라다닙니다. 컴퓨터, 스마트폰 또는 태블릿에 연결하여 캡처한 신호를 표시합니다.
200MHz 샘플링 속도, 30MHz 대역폭, 80VPP 입력 범위를 갖춘 IkaScope는 전자 시스템의 빠른 진단에 완벽하게 적합합니다.
-
- 50 MHz bandwidth (at 100mv/div)
- 80Vpp input range
- 200 MHz max. sampling rate
- Memory: 4 Kpts / channel
- Basic trigger options (Rsigin Edge, Falling Edge, Any edge)
- Adjustable hold-off time
-
Main characteristics
Timing parameters Values Sampling rate (MAX.) 200 MSPS (8 bits) Rise time (Calculated) 12 ns Input channels 1 Sampling memory 4 Kpts Waveform update rate 250 fps Time base accuracy ± 100ppm Vertical parameters Values Input impedance 1M|| 14 pF Vertical resolution 8 bits Maximum input voltage 80 Vpp ( ± 40V) CAT I Offset range ≤ 1V/Div: ± 20 V > 1V/Div: ± 40 V DC vertical gain accuracy (All ranges) ± 3% full scale DC vertical offset accuracy ± 3% of offset setting Coupling DC / AC (True) Bandwidth
Vertical range Bandwidth 100mV/div 50 MHz 200mV/div 37 MHz 500mV/div 40 MHz 1V/div 38 MHz 2V/div 38 MHz 5V/div 38 MHz 10V/div 30 MHz General

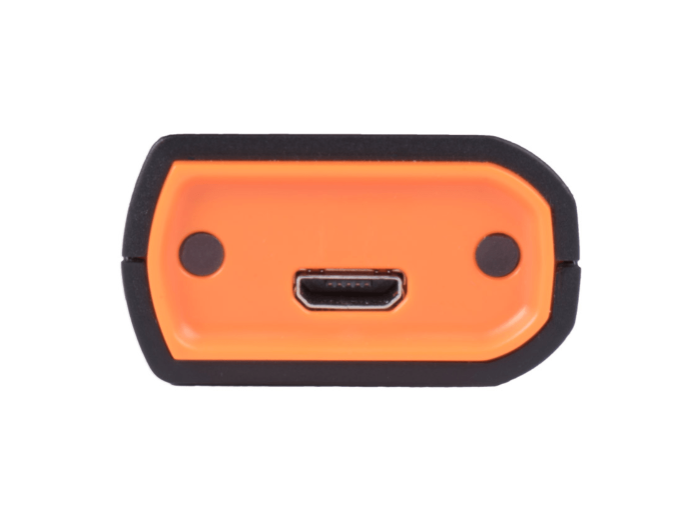

Parameters Values Input protection 253 VAC during 1 minute (production sample test, not tested in production, not guaranteed). Do NOT exceed ±40V Input to USB galvanic isolation 520 VAC 1 minute (production sample test, not tested in production, not guaranteed). Do NOT exceed ±40V Built-in lithium battery 420 mAH Communication interface Wifi 802.11 b/g/n/e/i 2.4 GHz. Access point or Station Operating, recharging conditions 10°C to 30°C. NEVER exceed these limits, as it could damage the battery and the product. < 80% HR non-condensing Altitude < 2000m. Dust free environment Storage conditions 10°C to 40°C. NEVER exceed these limits, as it could damage the battery and the product. < 80% HR non-condensing Altitude < 2000m. Dust free environment Charging method Micro USB port (5V ± 0.1V, 500mA), recharge only with USB compliant port. What’s in the box
IkaScope WS200 is shipped with the following accessories:
- Ground connection probe.
- Protective cap.
- USB charging cable.
- Quick start guide.
-
-

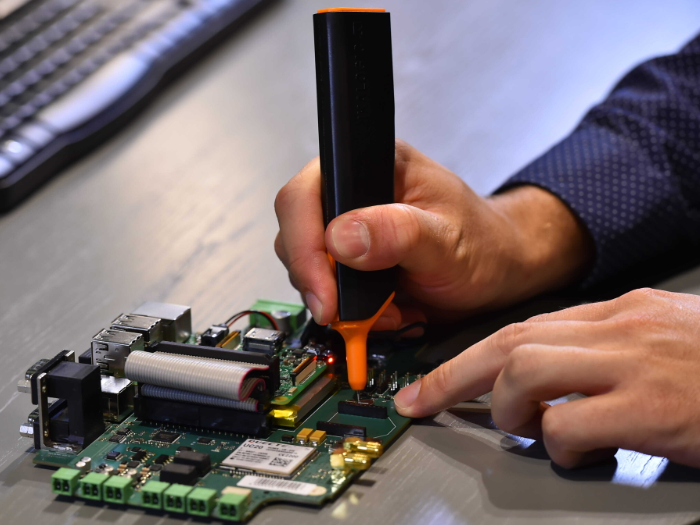

IkaScope is designed for engineers working on embedded systems. Firmware engineers will find IkaScope particularly easy to use and it will help them diagnosing hardware and firmware operation. Being ultra-portable makes IkaScope perfectly adapted for onsite maintenance operation. Typical application include, but are not limited to:
- Embedded systems
- Onsite industrial maintenance
- Robotics
- Aerospace & defense industry
- Automotive industry
- Education and research
WS2000 MANUAL
