SP1054G

SP1000G 시리즈 로직 분석기 및 임의 패턴 발생기는 1GSPS(1ns) 타이밍 분해능으로 로직 신호 및 프로토콜을 심층 분석할 수 있습니다. 외부 레퍼런스 클록킹(IN 및 OUT), 트리거 입력 및 출력, 조정 가능한 임계값 및 출력 전압 레벨은 SP1000G 시리즈를 독보적으로 강력한 실험실 장비로 만들어 줍니다.
SP1000G는 18채널, 36채널 또는 54채널의 3가지 버전으로 제공됩니다. SP1000G 시리즈는 처음부터 채널을 입력, 푸시풀 출력 또는 오픈 드레인 출력으로 개별적으로 구성할 수 있도록 설계되었습니다.

제품문의
  • Features

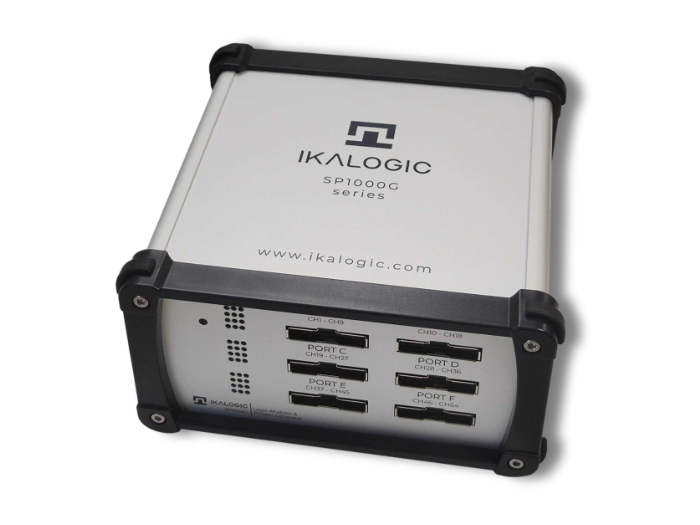

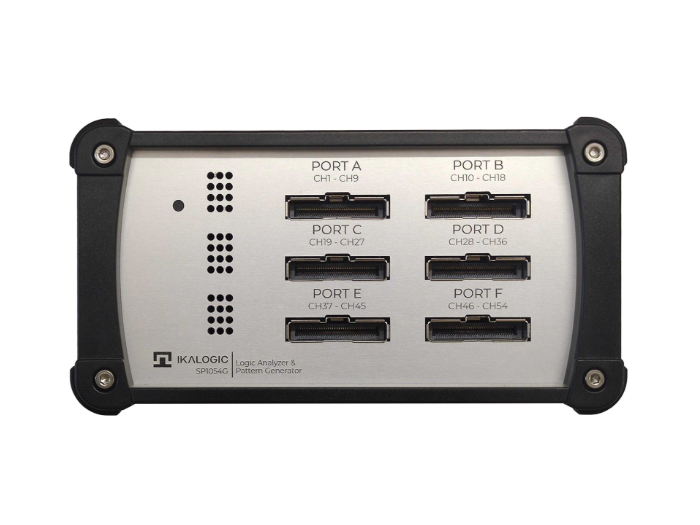

    SP1018G 54 Channels Logic Analyzer pattern generator


    • All SP1018G features
    • 54 logic channels
    • 12 Gb internal buffer memory
    • 1 GSPS available @ 54 channels
    • Offered one-to-one training session
  • Specifications

    Timing and measurements specifications

    Logic analyzer deviceSP1018GSP1036GSP1054G
    Sampling rate (MAX)1000 MHz1000 MHz1000 MHz
    External clock frequency (MAX)250 MHz250 MHz250 MHz
    Embedded memory4 Gb8 Gb12 Gb
    External clock timebase (Typical) (1)10MHz (max 25 ppm)10MHz (max 25 ppm)10MHz (max 25 ppm)
    External timebase inputYesYesYes
    Capture streaming to computerYesYesYes
    Generator Streaming from computerYesYesYes
    Configurable pre-trigger timeYesYesYes
    Trigger outputYesYesYes
    External trigger inputYesYesYes
    Logic signals digital bandwidth (2)250 MHz250 MHz250 MHz

    (1) External timebase is tested up to 25ppm stability. System operation is not guaranteed beyond this limit.

    (2) Logic signals digital bandwidths is measured with the supplied 9 probes wire harness.

    Active probes set specifications (input mode)

    Parametervalue
    Number of channels per probes set9
    Input impedance (Input mode)10 K\textOmega - 5 pF
    Threshold circuits1
    Adjustable capture threshold0V to 3.0V with 1mV resolution
    Adjustable pattern Generator voltage0V to 5.0V with 1mV resolution
    Compatible logic level0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
    Absolute max voltage on digital inputs+/- 10 V (Continuous or Transient)

    What’s in the box

    SP1018G

    • SP1000G host device
    • 2 Acitve probes (9 Channels each)
    • 2 9-Channels probes harness
    • 12V 3A power supply
    • USB-3 (A to B) 1.5 m cable

    SP1036G

    • SP1000G host device
    • 4 Acitve probes (9 Channels each)
    • 4 9-Channels probes harness
    • 12V 6A power supply
    • USB-3 (A to B) 1.5 m cable

    SP1054G

    • SP1000G host device
    • 6 Acitve probes (9 Channels each)
    • 6 9-Channels probes harness
    • 12V 6A power supply
    • USB-3 (A to B) 1.5 m cable
  • Options / Accessories


  • Applications

    SP1000G series logic analyzers and pattern generators are perfectly adapted for demanding applications, where it is required to capture logic signals with the maximum time resolution of 1ns on all channels. As a matter of fact, SP1000G series allow the usage of the maximum number of available channels without any reduction in sampling frequency (for example, SP1018 can capture signals on all 18 channels with 1ns resolution). Typical applications are:

    • Automated or manual Semiconductor testing
    • Electronic circuits testing and validation
    • Embedded systems debugging
    • Scientific Research
    • Serial protocols analysis, like I2C, SPI, UART or 1-Wire (non exhaustive list)
    • ADC diagnostic
