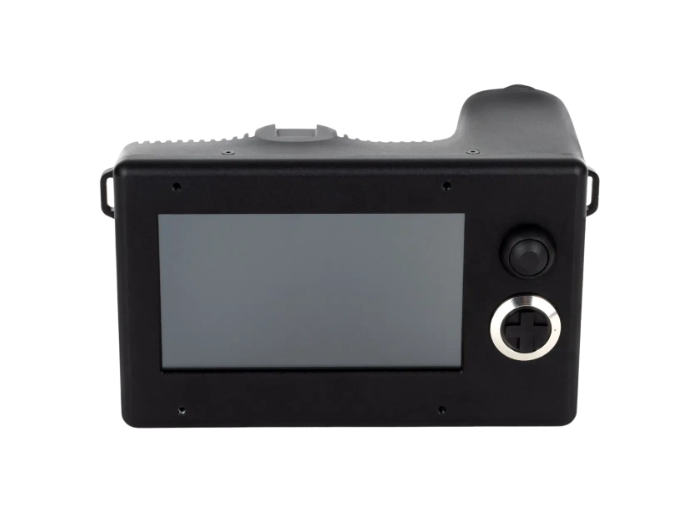

Acuros® GO SWIR Camera
세계 최초의 6 MP 휴대용 SWIR 카메라를 소개합니다:
고급 SWIR 이미징과 직관적인 휴대용 디자인이 만났습니다.
비교할 수 없는 SWIR 이미징을 위한 관문인 Acuros GO를 소개합니다. SWIR Vision Systems의 최첨단 고해상도 CQD SWIR 센서 기술을 통합한 Acuros GO는 현장에서 다용도로 사용할 수 있도록 설계된 역동적인 휴대용 카메라입니다. 배터리로 구동되는 이 휴대용 SWIR 카메라는 Acuros GO를 비, 눈, 안개, 스모그, 연기 및 먼지와 같은 열악한 시각적 환경에서 이미징하는 데 특히 유용하게 만듭니다. 광학 필터와 결합하면 Acuros GO를 사용하여 수분, 설탕 함량, 탄화수소 및 기타 적외선 화학 특성을 감지할 수 있습니다. Acuros GO는 고해상도 Vis-NIR-SWIR CQD 센서로 사진 촬영 기회의 새로운 세계를 열어줍니다!
-
- Image through smoke, haze, rain, mist, snow
- Detect infrared lasers from 800 nm to 2100 nm
- Image through plastics
- Infrared imaging through glass
- Detect moisture, sugar content, hydrocarbons, and other infrared chemical signatures
- Produce high-resolution monochrome NIR and SWIR stills and videos
- Best-in-class: SWIR imaging at 3K x 2K, 6.3 MP, 7 mm pixel pitch photos
- Portable: Light weight, battery powered, untethered, ‘SLR-like’ mirrorless digital handheld camera
- Ruggedized: IP65 rated, tough, water-proof, field deployable, drone mountable
- Easy-to-use: Intuitive point-and-shoot, ergonomic, touch-screen GUI, SD Card storage, OTS lenses and IR filters
- Versatile imaging: Snapshot global shutter, 30 fps for video capture, digital zoom, auto-exposure/auto-gain controls, micro-HDMI interface port
- Exportable: EAR-99 export designation (rare for SWIR cameras) – enables global distribution
-
Camera type Shortwave Infrared Mirrorless Camera
Sensor type SWIR Vision Systems CQD® quantum dot SWIR sensor
Sensor active area 21.4 mm x 14.3 mm
Sensor diagonal 25.7 mm
Shutter Snapshot global shutter
Pixel pitch 7 µm
Image format 3064 x 2040 pixels
Resolution 6.25 Megapixel
Digital zoom Yes
Bit depth 12 bit monochrome
Spectral sensitivity (SWIR Option) 400 to 1700 nm
Spectral Sensitivity (eSWIR
Option) 400 to 2000 nm
Frame rate 30 frames per second for video recording
Auto-exposure
Automated exposure and autogain algorithms for dynamic lighting
environments
Pixel correction Automated non-uniformity algorithms
Focus Manual focus
Video recording HD video saved to microSD
LCD touchscreen
109 mm [4.3"] diagonal high brightness 800 x 480 RGB LCD
touchscreen
Camera controls Control buttons and touch-sensitive screen menu
Control functions Image snapshot, video recording stop/start, digital zoom, playback
Power 2 x 18650 rechargeable lithium-ion batteries
Battery capacity estimated minimum of 2 hours, typical usage scenarios
Storage media microSD
External display port micro-HDMI – available for real-time display or playback
Weight 0.9 kg [2 lbs]
Mounting 1/4"-20 thread for tripod and handle mounts
Shock, vibration MIL-STD-810G
Operating temperature -20C to +45C
Storage temperature -40C to +85C
Thermal management Single-stage TEC for sensor noise stabilization
Environmental survivability IP65 rating for dust, water ingress protection (camera body)
Lens mount C-mount or M-42 at C back working distance (BWD)
Recommended lens Manual 50mm, f/2.4, SWIR corrected, M-42 mount at C BWD
Camera dimension 150 x 89 x 76 mm [6" x 3.5" x 3"]
-
-
Acuros® GO SWIR Camera DATASHEET
