MATUSCHEK
LK601

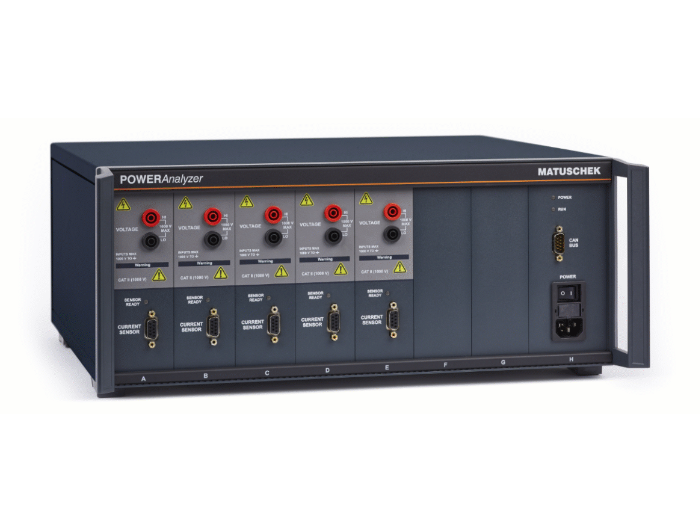

POWERAnalyzer LK601은 파워 미터의 높은 정확도와 최신 데이터 수집 시스템(DAQ)의 유연성을 결합합니다. 다중 채널 장치는 더 높은 전력 등급의 구성 요소에 대한 고정 드라이브 및 기타 테스트 벤치에서 데이터 수집 및 분석에 사용됩니다. EoL(end-of-line testing)까지의 산업용 애플리케이션은 연구 또는 실험실 시설의 R&D 프로세스뿐만 아니라 최적화할 수 있습니다.
-

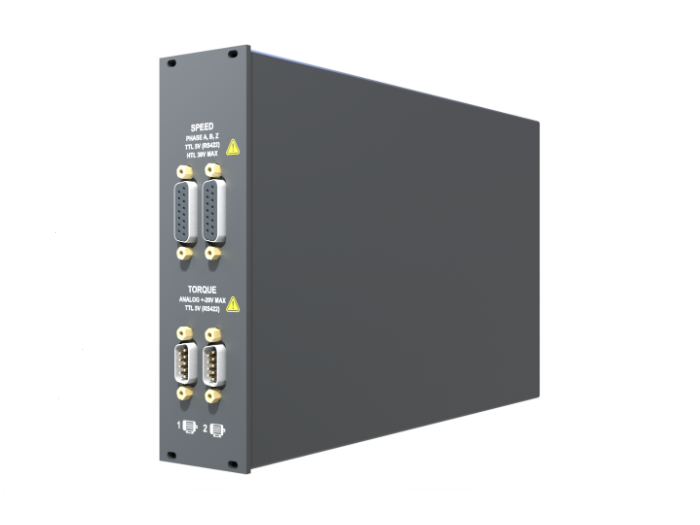

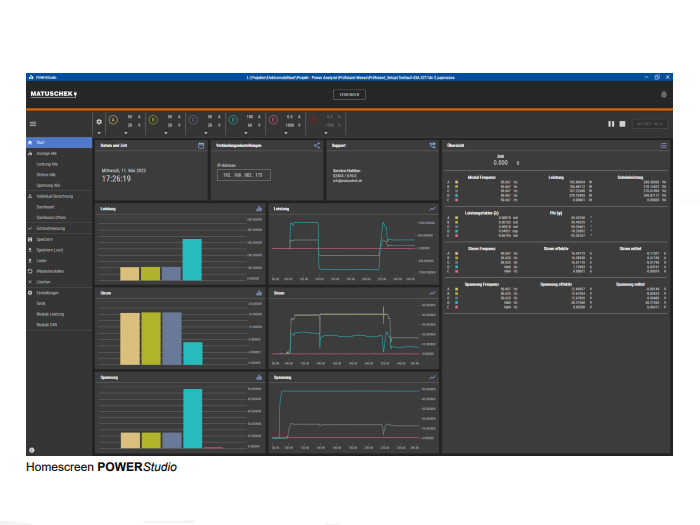

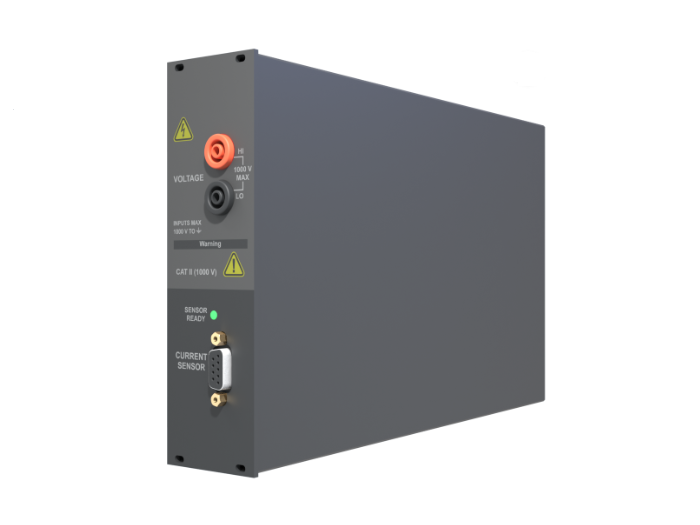

With the POWER-Analyzer LK601 up to 6 electrical phases (U+I) can be recorded and analyzed simultaneously at high precision. With the optional dual motor-card you can also record two encorder and two torque signals. Other process signals (e.g. temperature, vibration, etc.) can be acquired with the off-the-shelf equipped CAN interface . Using the intuitive and customizable POWERStudio-Software, all settings can be setup on the computer and user-defined parameters / views can be created.
-
-
-
Electric and hybrid vehicles
There is a variety of drive topologies for modern e-vehicles. With one machine, with front and rear machine or also with four drives close- or in-wheel. A large number of measured variables must be recorded.
Railroad drivetrains
The drive system of a train is electric. Here, too, are different topologies that are used depending on the application.
Wind turbines
The programming of wind inverters via the "power curve" (also called U/P characteristic) cannot work without the performance measurement. Depending on the generator and the location, a suitable "power curve" must be programmed.
Photovoltaics
Energy systems that are fed by solar panels have an inverter that converts DC voltage into AC voltage suitable for the grid. The efficiency plays the decisive role here. The measurement of the so-called "power conditioning system" is done with the help of a precise performance measurement system.
And much more
The electrical efficiency is an important parameter for every electrical consumer. For this reason, the applications are almost unlimited. Wherever voltage and current are used, performance measurement is of great importance.
LK601 DATASHEET
